Download TFT-file for Nextion 5" NX8048P050_011 and 7" NX8048P070_011 displays.
5" display frame 3D model (STL)
7" display frame 3D model (STL)
The amplifier's user interface is a graphical touch screen.
All amplifier functions and settings are controlled via the screen.
User main view.
Bar graph of four FETs or current.
Bar graph of two FETs or current.
Bar graph of a single FET or current.
Usage history and settings selection.
Band data, amount of the current bars, bar display max. limits.
Selection of allowed bands and selection of additional input attenuation.
New version coming soon!

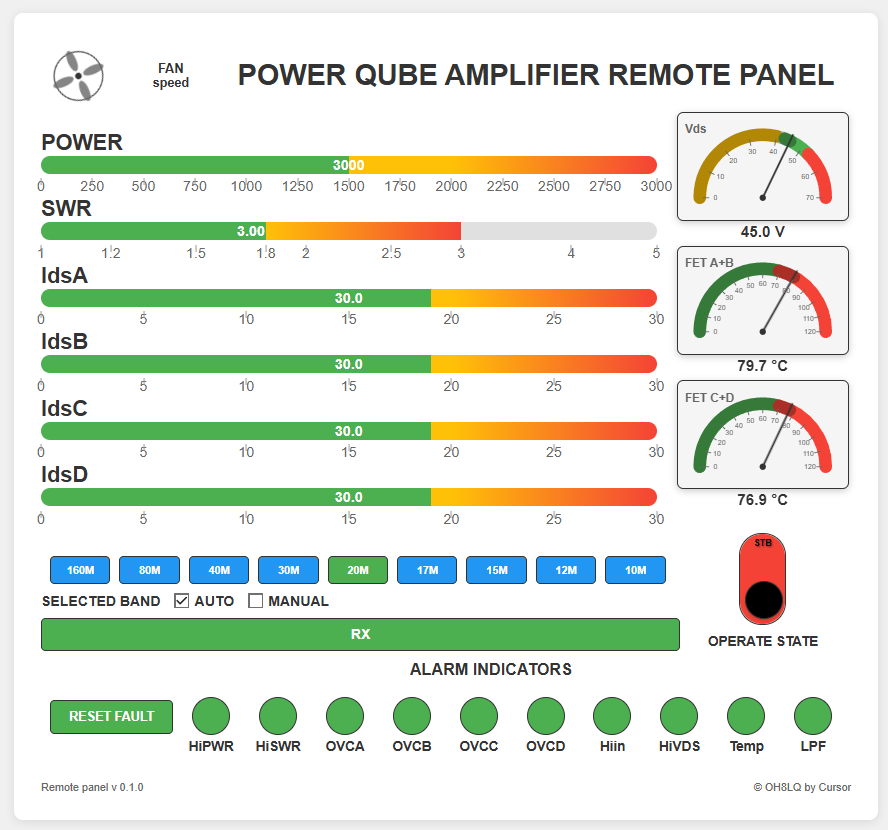

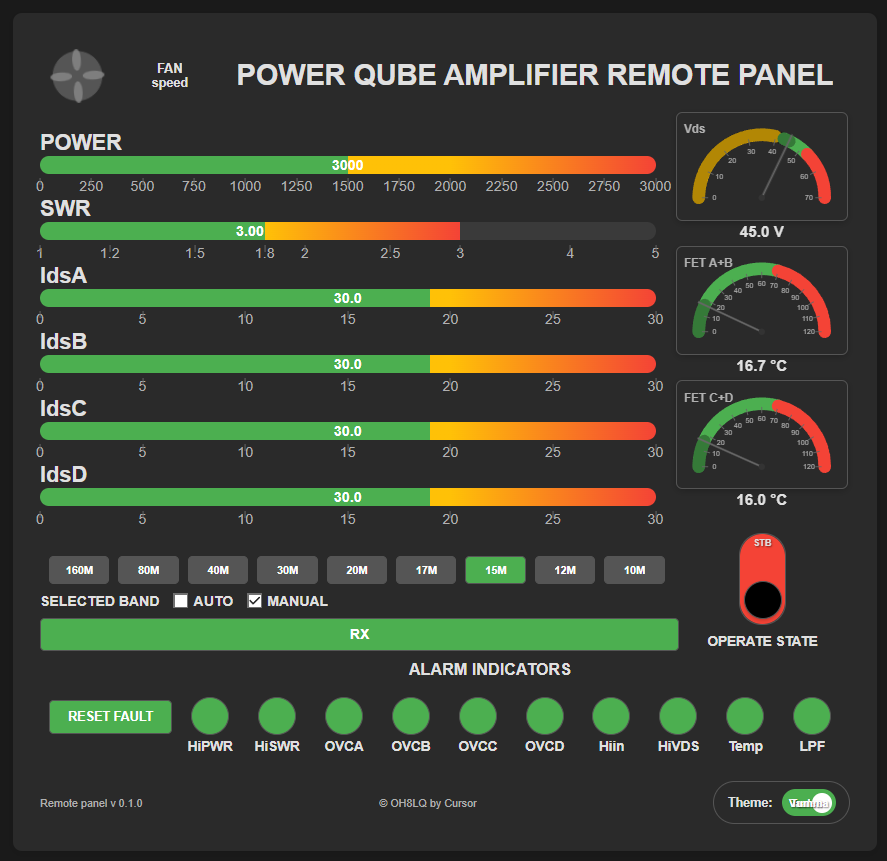

Added WiFi and some remeto possibilities....
